单步
TF - 置位(置1 复位就是置0)

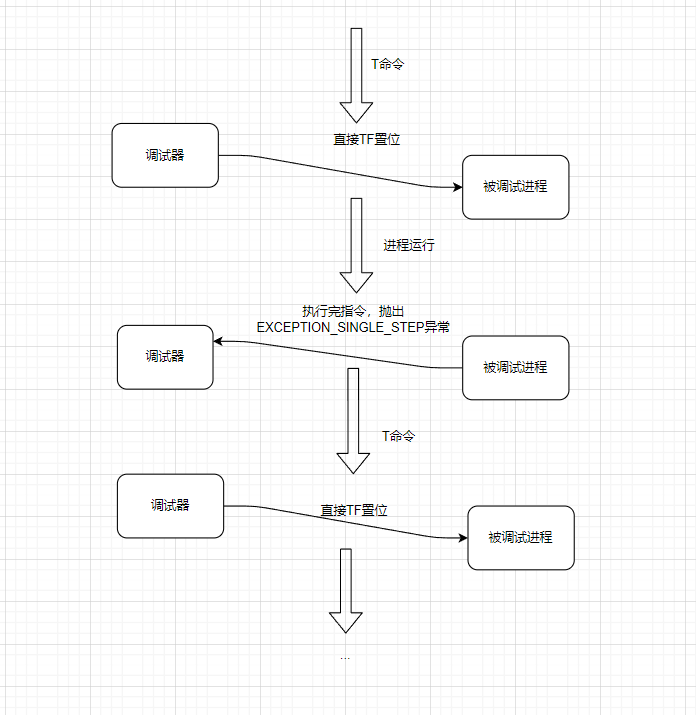

单步步入 -- 遇到call便入

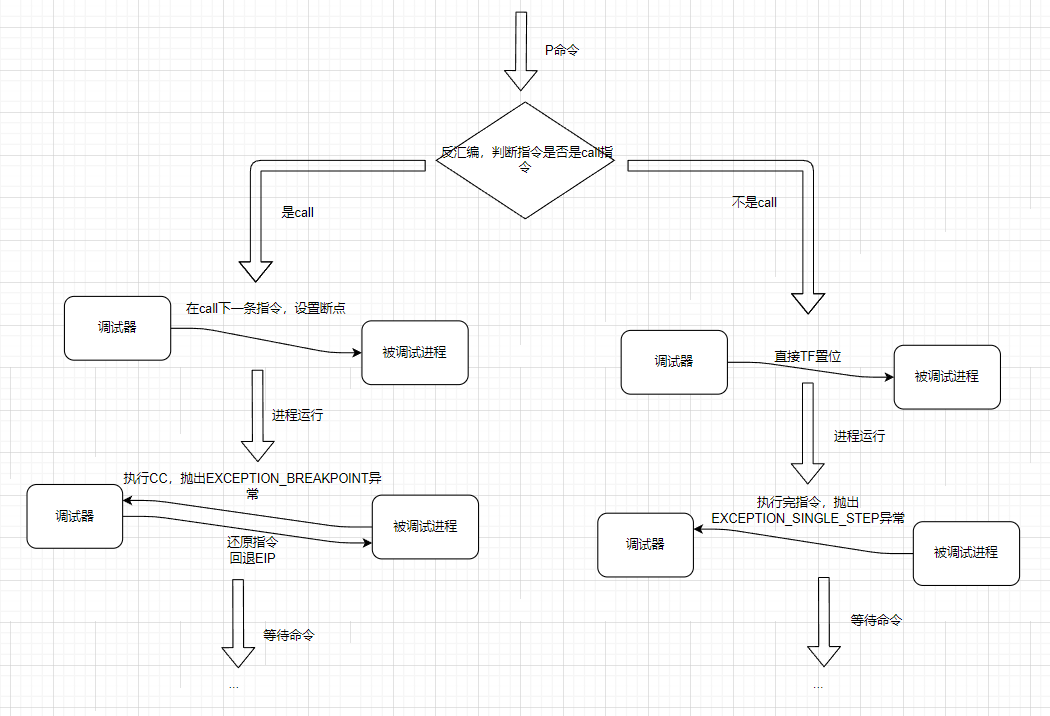

单步步过 -- 遇到call不入
区分一条指令是不是call指令: 通过反汇编引擎,反汇编出来是个 call 说明 就是 call指令
代码实现
.586
.model flat,stdcall
option casemap:none
include windows.inc
include user32.inc
include kernel32.inc
include msvcrt.inc
include udis86.inc
includelib user32.lib
includelib kernel32.lib
includelib msvcrt.lib
includelib libudis86.lib
.data
g_szExe db "winmine.exe", 0 ;打开的进程
g_hExe dd 0
g_szEXCEPTION_DEBUG_EVENT db "EXCEPTION_DEBUG_EVENT", 0dh, 0ah, 0
g_szCREATE_THREAD_DEBUG_EVENT db "CREATE_THREAD_DEBUG_EVENT", 0dh, 0ah, 0
g_szCREATE_PROCESS_DEBUG_EVENT db "CREATE_PROCESS_DEBUG_EVENT", 0dh, 0ah, 0
g_szEXIT_THREAD_DEBUG_EVENT db "EXIT_THREAD_DEBUG_EVENT", 0dh, 0ah, 0
g_szEXIT_PROCESS_DEBUG_EVENT db "EXIT_PROCESS_DEBUG_EVENT", 0dh, 0ah, 0
g_szLOAD_DLL_DEBUG_EVENT db "LOAD_DLL_DEBUG_EVENT", 0dh, 0ah, 0
g_szUNLOAD_DLL_DEBUG_EVENT db "UNLOAD_DLL_DEBUG_EVENT", 0dh, 0ah, 0
g_szOUTPUT_DEBUG_STRING_EVENT db "OUTPUT_DEBUG_STRING_EVENT", 0dh, 0ah, 0
g_szLoadDllFmt db "%08X %s", 0dh, 0ah, 0
g_szwLoadDllFmt dw '%', '0', '8', 'X', ' ', '%', 's', 0dh, 0ah, 0
g_szBpFmt db "CC异常 %08X", 0dh, 0ah, 0
g_szSsFmt db "单步异常 %08X", 0dh, 0ah, 0
g_szInputCmd db "选择命令：", 0dh, 0ah
db "是:单步步入", 0dh, 0ah
db "否:单步步过", 0dh, 0ah
db "取消:直接运行", 0dh, 0ah,0
g_btOldCode db 0 ;下断点之前的指令
g_dwBpAddr dd 010021a9h ;下断点的地址
g_byteCC db 0CCh ;CC指令
g_szOutPutAsm db 64 dup(0) ;要进行反汇编的指令
g_szOutPutAsmFmt db "%08x %-20s %-20s", 0dh, 0ah, 0 ;指令反汇编输出格式
g_ud_obj db 1000h dup(0)
g_bIsCCStep dd FALSE ;是否是CC单步
g_bIsStepStep dd FALSE ;是否是T命令单步
.code
;判断是否是 call 指令
IsCallMn proc uses esi edi pDE:ptr DEBUG_EVENT, pdwCodeLen:DWORD
LOCAL @dwBytesOut:DWORD
LOCAL @dwOff:DWORD
LOCAL @pHex:LPSTR
LOCAL @pAsm:LPSTR
mov esi, pDE
assume esi:ptr DEBUG_EVENT
;显示下一条即将执行的指令 从内存读取要反汇编指令 (20个字节)到 g_szOutPutAsm
invoke ReadProcessMemory, g_hExe, [esi].u.Exception.pExceptionRecord.ExceptionAddress, \
offset g_szOutPutAsm, 20, addr @dwBytesOut
;初始化结构体
invoke ud_init, offset g_ud_obj
invoke ud_set_input_buffer, offset g_ud_obj, offset g_szOutPutAsm, 20
invoke ud_set_mode, offset g_ud_obj, 32
invoke ud_set_syntax, offset g_ud_obj, offset ud_translate_intel
invoke ud_set_pc, offset g_ud_obj, [esi].u.Exception.pExceptionRecord.ExceptionAddress
invoke ud_disassemble, offset g_ud_obj
;获取EIP 当前指令地址
invoke ud_insn_off, offset g_ud_obj
mov @dwOff, eax
;获取机器码
invoke ud_insn_hex, offset g_ud_obj
mov @pHex, eax
;获取反汇编结果
invoke ud_insn_asm, offset g_ud_obj
mov @pAsm, eax
;获取指令长度
invoke ud_insn_len, offset g_ud_obj
mov edi, pdwCodeLen
mov [edi], eax
;输出反汇编结果
invoke crt_printf, offset g_szOutPutAsmFmt, @dwOff, @pHex, @pAsm
mov eax, @pAsm ;将反汇编字符数组的首地址给eax
.if dword ptr [eax] == 'llac' ;call在内存里面是 小尾方式存储
mov eax, TRUE
ret
.endif
mov eax, FALSE
ret
IsCallMn endp
;将TF置位(置1)
SetTF proc dwTID:DWORD
LOCAL @hThread:HANDLE
LOCAL @ctx:CONTEXT
invoke OpenThread, THREAD_ALL_ACCESS, FALSE, dwTID
mov @hThread, eax
mov @ctx.ContextFlags, CONTEXT_FULL
invoke GetThreadContext, @hThread, addr @ctx
;将TF置1
or @ctx.regFlag, 100h
invoke SetThreadContext, @hThread, addr @ctx
invoke CloseHandle, @hThread
ret
SetTF endp
;回退EIP
DecEIP proc dwTID:DWORD
LOCAL @hThread:HANDLE
LOCAL @ctx:CONTEXT
invoke OpenThread, THREAD_ALL_ACCESS, FALSE, dwTID
mov @hThread, eax
mov @ctx.ContextFlags, CONTEXT_FULL
invoke GetThreadContext, @hThread, addr @ctx
dec @ctx.regEip
invoke SetThreadContext, @hThread, addr @ctx
invoke CloseHandle, @hThread
ret
DecEIP endp
;设置断点
SetBp proc
LOCAL @dwBytesOut:DWORD
LOCAL @dwOldProc:DWORD ;修改之前的内存属性
;修改内存属性
invoke VirtualProtect, g_dwBpAddr, 1, PAGE_EXECUTE_READWRITE, addr @dwOldProc
;保存指定地址的指令，
invoke ReadProcessMemory, g_hExe, g_dwBpAddr, offset g_btOldCode, size g_btOldCode, addr @dwBytesOut
;在指定地址 写入cc
invoke WriteProcessMemory, g_hExe, g_dwBpAddr, offset g_byteCC, size g_byteCC, addr @dwBytesOut
;还原内存属性
invoke VirtualProtect, g_dwBpAddr, 1, @dwOldProc, addr @dwOldProc
ret
SetBp endp
;选择指令
InputCmd proc uses esi pDE:ptr DEBUG_EVENT
LOCAL @bIsCall:BOOL ;是否call指令
LOCAL @dwCodeLen:DWORD ;指令长度
mov esi, pDE
assume esi:ptr DEBUG_EVENT
;判断是否是call指定以及获取指令长度
invoke IsCallMn, pDE, addr @dwCodeLen
mov @bIsCall, eax ;保存判断结果
invoke MessageBox, NULL, offset g_szInputCmd, NULL, MB_YESNOCANCEL
.if eax == IDYES
;单步步入，直接TF置1
invoke SetTF, [esi].dwThreadId
;单步中需要处理T命令
mov g_bIsStepStep, TRUE
.elseif eax == IDNO
;单步步过，判断是否是call
.if @bIsCall
;call指令，在下一条指令设置断点
mov eax, [esi].u.Exception.pExceptionRecord.ExceptionAddress ;获取call指令地址
add eax, @dwCodeLen ;获取call下条指令地址 call指令地址 + 指令长度
mov g_dwBpAddr, eax
invoke SetBp ;设置断点
.else
;单步步入，直接TF置1
invoke SetTF, [esi].dwThreadId
;单步中需要处理T命令
mov g_bIsStepStep, TRUE
.endif
.else
;直接运行
.endif
ret
InputCmd endp
OnException proc uses esi pDE:ptr DEBUG_EVENT
LOCAL @dwOldProc:DWORD ;修改之前的内存属性
LOCAL @dwBytesOut:DWORD
mov esi, pDE
assume esi:ptr DEBUG_EVENT
.if [esi].u.Exception.pExceptionRecord.ExceptionCode == EXCEPTION_BREAKPOINT
;判断是否是自己的CC
mov eax, [esi].u.Exception.pExceptionRecord.ExceptionAddress
.if eax != g_dwBpAddr
;不是自己的CC异常，不处理
mov eax, DBG_EXCEPTION_NOT_HANDLED
ret
.endif
;处理自己的CC异常
invoke crt_printf, offset g_szBpFmt, [esi].u.Exception.pExceptionRecord.ExceptionAddress
;修改内存属性
invoke VirtualProtect, g_dwBpAddr, 1, PAGE_EXECUTE_READWRITE, addr @dwOldProc
;恢复之前指令
invoke WriteProcessMemory, g_hExe, g_dwBpAddr, offset g_btOldCode, size g_btOldCode, addr @dwBytesOut
;还原内存属性
invoke VirtualProtect, g_dwBpAddr, 1, @dwOldProc, addr @dwOldProc
;设置单步
invoke SetTF, [esi].dwThreadId
invoke DecEIP, [esi].dwThreadId
;单步中需要处理CC的单步
mov g_bIsCCStep, TRUE
;输入命令
invoke InputCmd, pDE
mov eax, DBG_CONTINUE
ret
.endif
;单步来了
.if [esi].u.Exception.pExceptionRecord.ExceptionCode == EXCEPTION_SINGLE_STEP
;处理自己的单步
invoke crt_printf, offset g_szSsFmt, [esi].u.Exception.pExceptionRecord.ExceptionAddress
;处理CC的单步
.if g_bIsCCStep == TRUE
mov g_bIsCCStep, FALSE
;重设断点, 重新写入CC
;invoke WriteProcessMemory, g_hExe, g_dwBpAddr, offset g_byteCC, size g_byteCC, addr @dwBytesOut
.endif
;处理T命令的单步
.if g_bIsStepStep == TRUE
mov g_bIsStepStep, FALSE
invoke InputCmd, pDE
.endif
mov eax, DBG_CONTINUE
ret
.endif
assume esi:nothing
mov eax, DBG_EXCEPTION_NOT_HANDLED
ret
OnException endp
OnCreateProcess proc
;设置断点
invoke SetBp
ret
OnCreateProcess endp
main proc
LOCAL @si:STARTUPINFO
LOCAL @pi:PROCESS_INFORMATION
LOCAL @de:DEBUG_EVENT
LOCAL @dwStatus:DWORD
invoke RtlZeroMemory, addr @si, size @si
invoke RtlZeroMemory, addr @pi, size @pi
invoke RtlZeroMemory, addr @de, size @de
mov @dwStatus, DBG_CONTINUE
;建立调试会话
invoke CreateProcess, NULL, offset g_szExe, NULL, NULL, FALSE, \
DEBUG_ONLY_THIS_PROCESS,\
NULL, NULL,\
addr @si,\
addr @pi
.if !eax
ret
.endif
mov eax, @pi.hProcess
mov g_hExe, eax
;循环接受调试事件
.while TRUE
invoke WaitForDebugEvent, addr @de, INFINITE
;处理调试事件
.if @de.dwDebugEventCode == EXCEPTION_DEBUG_EVENT
;invoke crt_printf, offset g_szEXCEPTION_DEBUG_EVENT
invoke OnException, addr @de
mov @dwStatus, eax
.elseif @de.dwDebugEventCode == CREATE_THREAD_DEBUG_EVENT
invoke crt_printf, offset g_szCREATE_THREAD_DEBUG_EVENT
反汇编头文件
udis86.inc
ifndef UDIS86_H
UDIS86_H equ
ud_init proto c ud:ptr
ud_set_input_buffer proto c ud:ptr, pBuf:ptr, nSize:dword
ud_set_mode proto c ud:ptr, nBit:dword
ud_set_syntax proto c ud:ptr, translate:ptr
ud_translate_intel proto c ud:ptr
ud_set_pc proto c ud:ptr, eip:dword
ud_disassemble proto c ud:ptr
ud_insn_asm proto c ud:ptr
ud_insn_len proto c ud:ptr
ud_insn_off proto c ud:ptr
ud_insn_hex proto c ud:ptr
endif
反单步
单步主要是通过 TF 置位 来实现的,所以检查单步的一般思路是 检查TF 位
获取TF位的方法是 获取 标志寄存器
;pushfd
;and dword ptr [esp], 100h
;jz CONTIUE
;invoke MessageBox, NULL, NULL, NULL, MB_OK
但是通过调试发现并不能实现,应该 代码执行完 TF 已经被还原为0 了此时在入栈,它的值就是0 ,所以没办法检查判断是否为1,因此要反其道行之 ,自己置个单步, 正常情况下自己可以收到一个单步异常,但处于调试状况时就无法收到,因为被调试器收了,调试器收到之后就继续往后执行
.586
.model flat,stdcall
option casemap:none
include windows.inc
include user32.inc
include kernel32.inc
includelib user32.lib
includelib kernel32.lib
WinMain proto :DWORD,:DWORD,:DWORD,:DWORD
.data
ClassName db "MainWinClass",0
AppName db "Main Window",0
.data?
hInstance HINSTANCE ?
CommandLine LPSTR ?
.code
; ---------------------------------------------------------------------------
start:
invoke GetModuleHandle, NULL
mov hInstance,eax
invoke GetCommandLine
mov CommandLine,eax
invoke WinMain, hInstance,NULL,CommandLine, SW_SHOWDEFAULT
invoke ExitProcess,eax
;SEH异常回调函数
F0Handler proc uses esi edi pER:ptr EXCEPTION_RECORD, pFrame:dword, pContext:ptr CONTEXT, pDC:dword
assume esi:ptr EXCEPTION_RECORD
mov esi, pER
mov edi, pContext
assume edi:ptr CONTEXT
;跳过下条指令
add [edi].regEip, 5
assume edi:nothing
assume esi:nothing
ret
F0Handler endp
WinMain proc hInst:HINSTANCE,hPrevInst:HINSTANCE,CmdLine:LPSTR,CmdShow:DWORD
LOCAL wc:WNDCLASSEX
LOCAL msg:MSG
LOCAL hwnd:HWND
assume fs:nothing
push offset F0Handler ;handler ;注册SEH异常
push fs:[0] ;next
mov fs:[0], esp
pushfd
or dword ptr [esp], 100h
popfd
;异常被调试器收了,会继续执行下面的代码,自己异常无法收到,无法进SEH异常函数,所以无法跳过下条指令
invoke ExitProcess, 0 ;退出进程 非单步调试情况下执行当前指令进异常,指令长度为5
;获取TF
;pushfd
;and dword ptr [esp], 100h
;jz CONTIUE
;invoke MessageBox, NULL, NULL, NULL, MB_OK
;CONTIUE:
;正常流程，TF没有置1
mov wc.cbSize,SIZEOF WNDCLASSEX
mov wc.style, CS_HREDRAW or CS_VREDRAW
mov wc.lpfnWndProc, OFFSET WndProc
mov wc.cbClsExtra,NULL
mov wc.cbWndExtra,NULL
push hInstance
pop wc.hInstance
mov wc.hbrBackground,COLOR_BTNFACE+1
mov wc.lpszMenuName,NULL
mov wc.lpszClassName,OFFSET ClassName
invoke LoadIcon,NULL,IDI_APPLICATION
mov wc.hIcon,eax
mov wc.hIconSm,eax
invoke LoadCursor,NULL,IDC_ARROW
mov wc.hCursor,eax
invoke RegisterClassEx, addr wc
INVOKE CreateWindowEx,NULL,ADDR ClassName,ADDR AppName,\
WS_OVERLAPPEDWINDOW,CW_USEDEFAULT,\
CW_USEDEFAULT,CW_USEDEFAULT,CW_USEDEFAULT,NULL,NULL,\
hInst,NULL
mov hwnd,eax
invoke ShowWindow, hwnd,SW_SHOWNORMAL
invoke UpdateWindow, hwnd
.WHILE TRUE
invoke GetMessage, ADDR msg,NULL,0,0
.BREAK .IF (!eax)
invoke TranslateMessage, ADDR msg
invoke DispatchMessage, ADDR msg
.ENDW
;卸载SEH
pop fs:[0]
add esp, 4
mov eax,msg.wParam
ret
WinMain endp
WndProc proc hWnd:HWND, uMsg:UINT, wParam:WPARAM, lParam:LPARAM
.IF uMsg==WM_DESTROY
invoke PostQuitMessage,NULL
.ELSEIF uMsg==WM_CREATE
;
.ELSE
invoke DefWindowProc,hWnd,uMsg,wParam,lParam
ret
.ENDIF
xor eax,eax
ret
WndProc endp
end start
应对方法,在调试器里把上面代码 nop 调,调试器本身没办法处理,因为没办法判断单步是调试器自己的还是程序的
TRACE 追踪

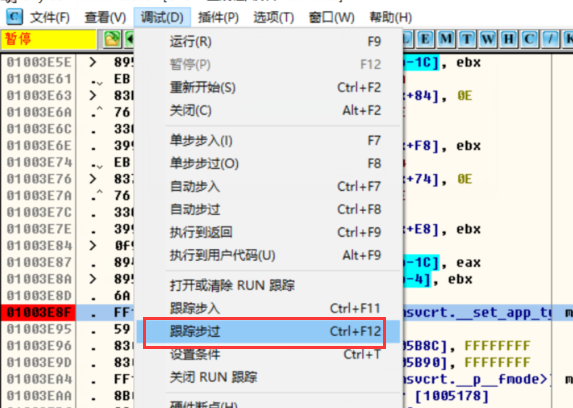

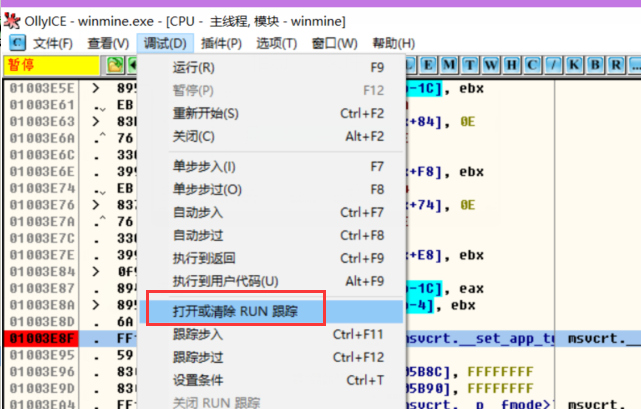

OD的追踪功能

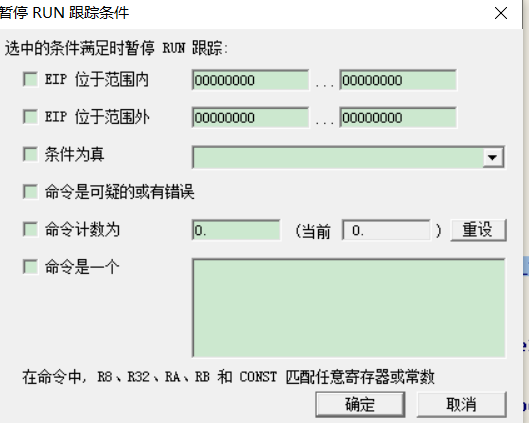

也可以设置条件

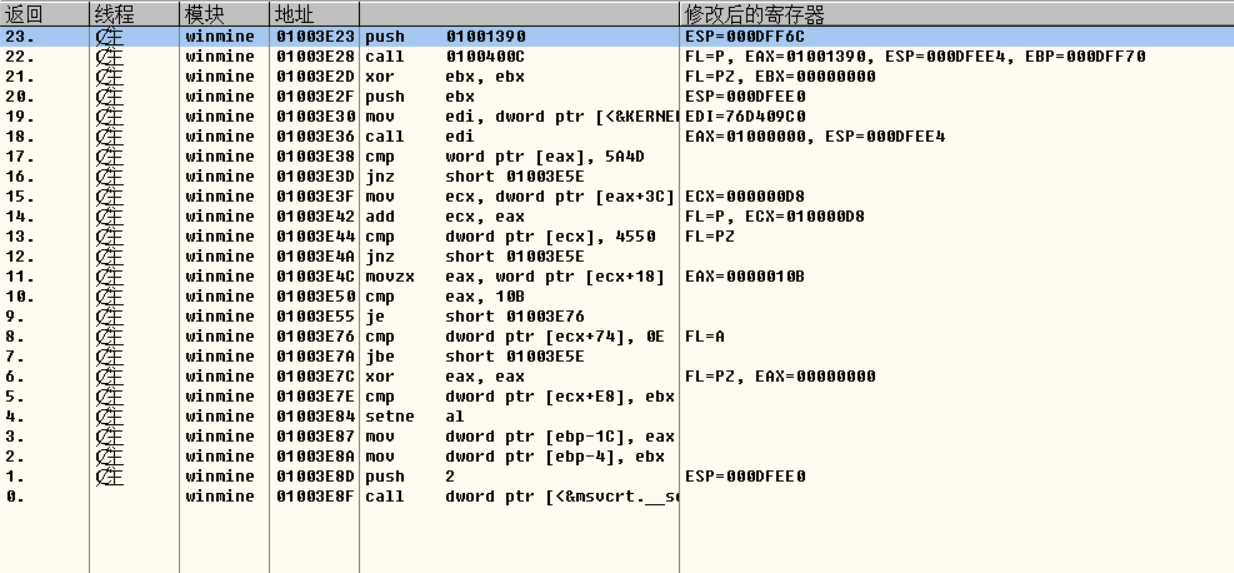

查看
开启trace 就在 指定范围地址直接运行 p 命令,不用提示输入指令
代码实现
点击否执行trace功能
.586
.model flat,stdcall
option casemap:none
include windows.inc
include user32.inc
include kernel32.inc
include msvcrt.inc
include udis86.inc
includelib user32.lib
includelib kernel32.lib
includelib msvcrt.lib
includelib libudis86.lib
.data
g_szExe db "winmine.exe", 0
g_hExe dd 0
g_szEXCEPTION_DEBUG_EVENT db "EXCEPTION_DEBUG_EVENT", 0dh, 0ah, 0
g_szCREATE_THREAD_DEBUG_EVENT db "CREATE_THREAD_DEBUG_EVENT", 0dh, 0ah, 0
g_szCREATE_PROCESS_DEBUG_EVENT db "CREATE_PROCESS_DEBUG_EVENT", 0dh, 0ah, 0
g_szEXIT_THREAD_DEBUG_EVENT db "EXIT_THREAD_DEBUG_EVENT", 0dh, 0ah, 0
g_szEXIT_PROCESS_DEBUG_EVENT db "EXIT_PROCESS_DEBUG_EVENT", 0dh, 0ah, 0
g_szLOAD_DLL_DEBUG_EVENT db "LOAD_DLL_DEBUG_EVENT", 0dh, 0ah, 0
g_szUNLOAD_DLL_DEBUG_EVENT db "UNLOAD_DLL_DEBUG_EVENT", 0dh, 0ah, 0
g_szOUTPUT_DEBUG_STRING_EVENT db "OUTPUT_DEBUG_STRING_EVENT", 0dh, 0ah, 0
g_szLoadDllFmt db "%08X %s", 0dh, 0ah, 0
g_szwLoadDllFmt dw '%', '0', '8', 'X', ' ', '%', 's', 0dh, 0ah, 0
g_szBpFmt db "CC异常 %08X", 0dh, 0ah, 0
g_szSsFmt db "单步异常 %08X", 0dh, 0ah, 0
g_szOutPutAsmFmt db "%08x %-20s %-20s", 0dh, 0ah, 0
g_szInputCmd db "选择命令：", 0dh, 0ah
db "是:单步步入", 0dh, 0ah
db "否:单步步过", 0dh, 0ah
db "取消:直接运行", 0dh, 0ah,0
g_btOldCode db 0
g_dwBpAddr dd 01003e21h
g_byteCC db 0CCh
g_szOutPutAsm db 64 dup(0)
g_ud_obj db 1000h dup(0)
g_bIsCCStep dd FALSE
g_bIsStepStep dd FALSE
g_bIsAutoStep dd FALSE ;是否trace追踪
.code
IsCallMn proc uses esi edi pDE:ptr DEBUG_EVENT, pdwCodeLen:DWORD
LOCAL @dwBytesOut:DWORD
LOCAL @dwOff:DWORD
LOCAL @pHex:LPSTR
LOCAL @pAsm:LPSTR
mov esi, pDE
assume esi:ptr DEBUG_EVENT
;显示下一条即将执行的指令
invoke ReadProcessMemory, g_hExe, [esi].u.Exception.pExceptionRecord.ExceptionAddress, \
offset g_szOutPutAsm, 20, addr @dwBytesOut
invoke ud_init, offset g_ud_obj
invoke ud_set_input_buffer, offset g_ud_obj, offset g_szOutPutAsm, 20
invoke ud_set_mode, offset g_ud_obj, 32
invoke ud_set_syntax, offset g_ud_obj, offset ud_translate_intel
invoke ud_set_pc, offset g_ud_obj, [esi].u.Exception.pExceptionRecord.ExceptionAddress
invoke ud_disassemble, offset g_ud_obj
invoke ud_insn_off, offset g_ud_obj
mov @dwOff, eax
invoke ud_insn_hex, offset g_ud_obj
mov @pHex, eax
invoke ud_insn_asm, offset g_ud_obj
mov @pAsm, eax
invoke ud_insn_len, offset g_ud_obj
mov edi, pdwCodeLen
mov [edi], eax
invoke crt_printf, offset g_szOutPutAsmFmt, @dwOff, @pHex, @pAsm
mov eax, @pAsm
.if dword ptr [eax] == 'llac'
mov eax, TRUE
ret
.endif
mov eax, FALSE
ret
IsCallMn endp
SetTF proc dwTID:DWORD
LOCAL @hThread:HANDLE
LOCAL @ctx:CONTEXT
invoke OpenThread, THREAD_ALL_ACCESS, FALSE, dwTID
mov @hThread, eax
mov @ctx.ContextFlags, CONTEXT_FULL
invoke GetThreadContext, @hThread, addr @ctx
or @ctx.regFlag, 100h
invoke SetThreadContext, @hThread, addr @ctx
invoke CloseHandle, @hThread
ret
SetTF endp
DecEIP proc dwTID:DWORD
LOCAL @hThread:HANDLE
LOCAL @ctx:CONTEXT
invoke OpenThread, THREAD_ALL_ACCESS, FALSE, dwTID
mov @hThread, eax
mov @ctx.ContextFlags, CONTEXT_FULL
invoke GetThreadContext, @hThread, addr @ctx
dec @ctx.regEip
invoke SetThreadContext, @hThread, addr @ctx
invoke CloseHandle, @hThread
ret
DecEIP endp
SetBp proc
LOCAL @dwBytesOut:DWORD
;保存原来的指令， 在 01001BCF写入CC
invoke ReadProcessMemory, g_hExe, g_dwBpAddr, offset g_btOldCode, size g_btOldCode, addr @dwBytesOut
invoke WriteProcessMemory, g_hExe, g_dwBpAddr, offset g_byteCC, size g_byteCC, addr @dwBytesOut
ret
SetBp endp
InputCmd proc uses esi pDE:ptr DEBUG_EVENT
LOCAL @bIsCall:BOOL
LOCAL @dwCodeLen:DWORD
mov esi, pDE
assume esi:ptr DEBUG_EVENT
.if [esi].u.Exception.pExceptionRecord.ExceptionAddress == 01003ebeh
mov g_bIsAutoStep, FALSE
.endif
invoke IsCallMn, pDE, addr @dwCodeLen
mov @bIsCall, eax
;如果开启了trace 直接执行p命令,否则提示输入指令
.if g_bIsAutoStep != TRUE
invoke MessageBox, NULL, offset g_szInputCmd, NULL, MB_YESNOCANCEL
.else
mov eax, IDNO
.endif
.if eax == IDYES
;单步步入，直接TF置1
invoke SetTF, [esi].dwThreadId
;单步中需要处理T命令
mov g_bIsStepStep, TRUE
.elseif eax == IDNO
;开启trace追踪
mov g_bIsAutoStep, TRUE
;单步步过，判断是否是call
.if @bIsCall
;call指令，在下一条指令设置断点
mov eax, [esi].u.Exception.pExceptionRecord.ExceptionAddress
add eax, @dwCodeLen
mov g_dwBpAddr, eax
invoke SetBp
.else
;单步步入，直接TF置1
invoke SetTF, [esi].dwThreadId
;单步中需要处理T命令
mov g_bIsStepStep, TRUE
.endif
.else
;直接运行
.endif
ret
InputCmd endp
OnException proc uses esi pDE:ptr DEBUG_EVENT
LOCAL @dwBytesOut:DWORD
mov esi, pDE
assume esi:ptr DEBUG_EVENT
.if [esi].u.Exception.pExceptionRecord.ExceptionCode == EXCEPTION_BREAKPOINT
;判断是否是自己的CC
mov eax, [esi].u.Exception.pExceptionRecord.ExceptionAddress
.if eax != g_dwBpAddr
;不是自己的CC异常，不处理
mov eax, DBG_EXCEPTION_NOT_HANDLED
ret
.endif
;处理自己的CC异常
invoke crt_printf, offset g_szBpFmt, [esi].u.Exception.pExceptionRecord.ExceptionAddress
;恢复指令
invoke WriteProcessMemory, g_hExe, g_dwBpAddr, offset g_btOldCode, size g_btOldCode, addr @dwBytesOut
;设置单步
invoke SetTF, [esi].dwThreadId
invoke DecEIP, [esi].dwThreadId
;单步中需要处理CC的单步
mov g_bIsCCStep, TRUE
;输入命令
invoke InputCmd, pDE
mov eax, DBG_CONTINUE
ret
.endif
;单步来了
.if [esi].u.Exception.pExceptionRecord.ExceptionCode == EXCEPTION_SINGLE_STEP
;处理自己的单步
invoke crt_printf, offset g_szSsFmt, [esi].u.Exception.pExceptionRecord.ExceptionAddress
;处理CC的单步
.if g_bIsCCStep == TRUE
mov g_bIsCCStep, FALSE
;重设断点, 重新写入CC
;invoke WriteProcessMemory, g_hExe, g_dwBpAddr, offset g_byteCC, size g_byteCC, addr @dwBytesOut
.endif
;处理T命令的单步
.if g_bIsStepStep == TRUE
mov g_bIsStepStep, FALSE
invoke InputCmd, pDE
.endif
mov eax, DBG_CONTINUE
ret
.endif
assume esi:nothing
mov eax, DBG_EXCEPTION_NOT_HANDLED
ret
OnException endp
OnCreateProcess proc
;保存原来的指令， 在 01001BCF写入CC
invoke SetBp
ret
OnCreateProcess endp
main proc
LOCAL @si:STARTUPINFO
LOCAL @pi:PROCESS_INFORMATION
LOCAL @de:DEBUG_EVENT
LOCAL @dwStatus:DWORD
invoke RtlZeroMemory, addr @si, size @si
invoke RtlZeroMemory, addr @pi, size @pi
invoke RtlZeroMemory, addr @de, size @de
mov @dwStatus, DBG_CONTINUE
;建立调试会话
invoke CreateProcess, NULL, offset g_szExe, NULL, NULL, FALSE, \
DEBUG_ONLY_THIS_PROCESS,\
NULL, NULL,\
addr @si,\
addr @pi
.if !eax
ret
.endif
mov eax, @pi.hProcess
mov g_hExe, eax
;循环接受调试事件
.while TRUE
invoke WaitForDebugEvent, addr @de, INFINITE
;处理调试事件
.if @de.dwDebugEventCode == EXCEPTION_DEBUG_EVENT
;invoke crt_printf, offset g_szEXCEPTION_DEBUG_EVENT
invoke OnException, addr @de
mov @dwStatus, eax
.elseif @de.dwDebugEventCode == CREATE_THREAD_DEBUG_EVENT
invoke crt_printf, offset g_szCREATE_THREAD_DEBUG_EVENT
.elseif @de.dwDebugEventCode == CREATE_PROCESS_DEBUG_EVENT
;invoke crt_printf, offset g_szCREATE_PROCESS_DEBUG_EVENT
invoke OnCreateProcess
.elseif @de.dwDebugEventCode == EXIT_THREAD_DEBUG_EVENT
invoke crt_printf, offset g_szEXIT_THREAD_DEBUG_EVENT
.elseif @de.dwDebugEventCode == EXIT_PROCESS_DEBUG_EVENT
invoke crt_printf, offset g_szEXIT_PROCESS_DEBUG_EVENT
.elseif @de.dwDebugEventCode == LOAD_DLL_DEBUG_EVENT
;invoke OnLoadDll, addr @de
.elseif @de.dwDebugEventCode == UNLOAD_DLL_DEBUG_EVENT
invoke crt_printf, offset g_szUNLOAD_DLL_DEBUG_EVENT
.elseif @de.dwDebugEventCode == OUTPUT_DEBUG_STRING_EVENT
invoke crt_printf, offset g_szOUTPUT_DEBUG_STRING_EVENT
.endif
;提交事件处理结果
invoke ContinueDebugEvent, @de.dwProcessId, @de.dwThreadId, @dwStatus
invoke RtlZeroMemory, addr @de, size @de
.endw
ret
main endp
start:
invoke main
雷达卡
发表于 2025-1-4 22:51:53
提升卡
置顶卡
沉默卡
喧嚣卡
变色卡
千斤顶
